Using a Polarizing filter in Macro

The new image submission workflow gives us a nice template for recording details of how a photo was taken in the field. One of the prompts is to list any filters used. While I’ve often noted filters in the past, I think this new info box highlights it more. So @Bill_Fach has observed with some of my recent photos and while it isn’t anything new, I thought I’d put up an example of just how much of a difference a polarizer makes.

First without -

And with -

Both are single images, not stacks, and were taken within a minute or so of each other. I’ve also kept the processing and cropping as close as I could (sync and previous gave me an error every time I tried it so I gave up). Both are at ISO 640 and f/9, but the non-polarized is 1/40 sec and the polarized 1/25. That’s it - not much of a difference in settings, and the shutter speed is easily accommodated with this ISO. I could have pushed it higher if it was handheld, but being on a tripod made it unimportant given that the insects weren’t moving much or quickly.

I was so excited to get close to these two White-faced Meadowhawks in their mating wheel that I forgot to turn the polarizer at first. Then I remembered and what a difference it makes. These guys were backlit in nearly direct sunlight, something I don’t cherish, but will take for a moment like this. I overexposed by just 1/3 of a stop, but knew that my camera could hang onto shadow detail so it wasn’t necessary to push it more. As a result, I could process the polarized photo to seem as if it was a more overcast scene than it was, but the unpolarized shot still has the look of undiffused light.

Moreover look at how distracting the background is at the same f-stop. And there is a lot of glare and reflection on the eyes and the abdomens of the dragonflies as well as the tree 's needles. Oh sure, I could mask the heck out of things in an effort to try to minimize that effect, but in my experience no processing tool or technique can replace a polarizing filter, not even the dehaze slider does a really good job although it can help.

I purchased both of my macro lenses used and immediately got polarizers for each of them. They make a huge difference to the quality of my work and being able to capture those details macro photos really need. These days with cameras performing so well at higher ISO speeds, the slight light sacrifice is even easier to deal with. Oh and many modern polarizing filters do the job with less light blocking than older filters from say 20 years ago.

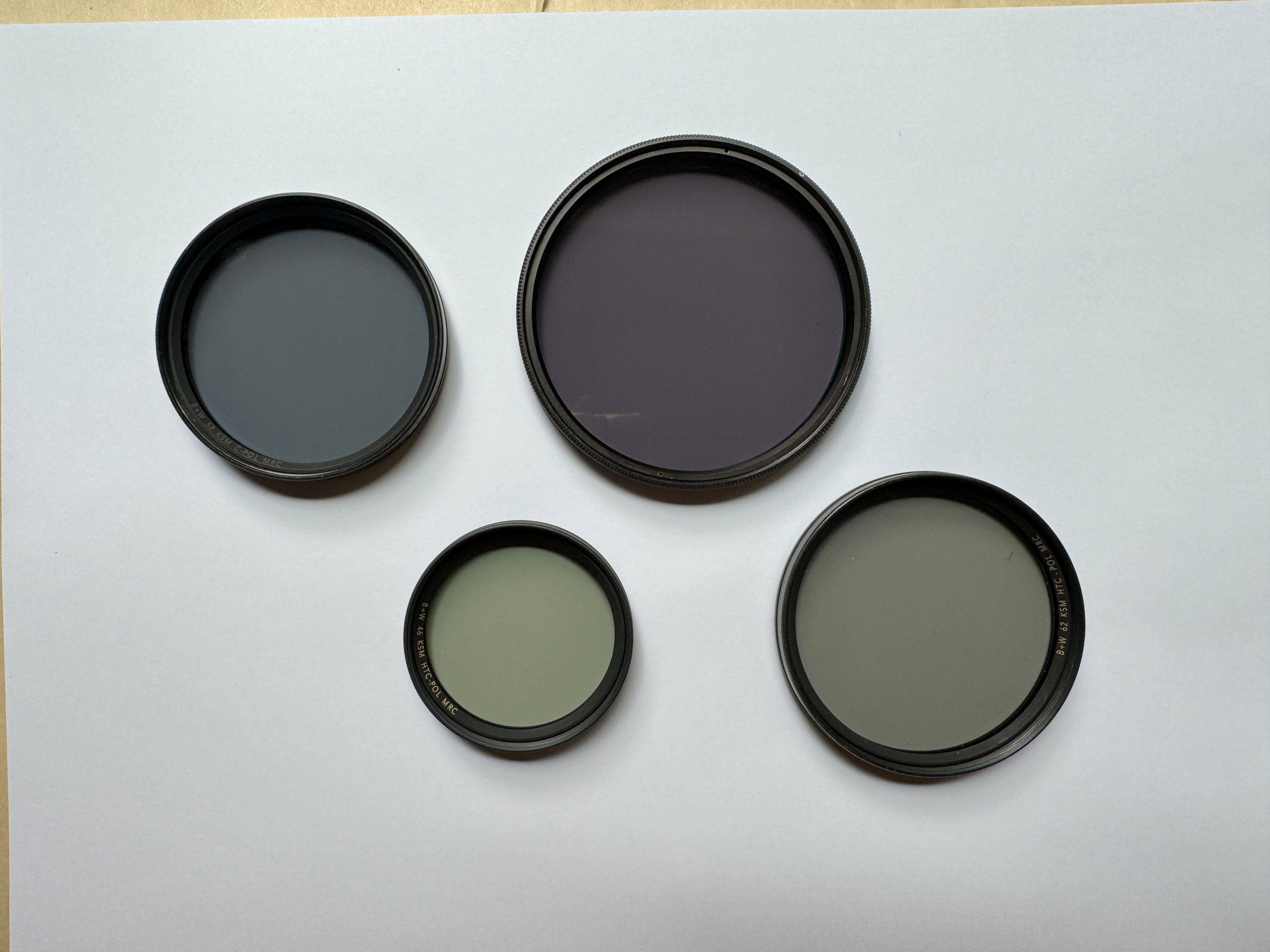

Here is my current collection -

From top left - B+W F-pro circa 2013, Tiffen c. 2009, B+W F-pro c. 2020, B+W F-pro c. 2025

As you can see, the F-pro line from B+W has changed its color profile for a more neutral cast and I believe the newer filters are brighter as well. The Tiffen is the darkest and looks to have a different (purple??) color cast as well, something easily corrected in post, although I can’t say I was ever bothered by it and still use it on my 100-400mm as it has the same filter size as my old Olympus Zuiko D 12-60mm. It doesn’t have a scratch on it, that’s just a window reflection.

In conclusion, if you don’t have or don’t use a polarizing filter for macro, why not give it a try and see if it gives you the results you’re looking for.

1 Like

many thanks
By co-incidence ordered one yesterday

Thx

Huw

Kris: Just a terrific coverage of this topic. Thanks so much for the effort and thoroughness of your insights. Most excellent. >=))>

Funny, @Huw_Thomas - I hope you like working with it for close stuff.

Thanks @Bill_Fach - Just wrote it off the cuff, but I’m glad it came across at least semi-coherently.

So do you twist it for best effect or leave it in one position - too many other things to worry about??

Regards

Huw

Good question, Huw and the answer is it depends. :upside_down_face: With the example photo above, I think I had it turned to maximum, but sometimes I back off if the result is too flat. Sometimes a little shine is a more natural look and some adjustment to the filter will bring it out. Mostly I’m looking at distracting elements and fine details of the subject - if one is too prevalent or the other too lost, I fiddle some more. If I’d been shooting something that wouldn’t fly away, I might have just used a fold-out diffuser to make shade and not used, or used fully on, a polarizer at all. Hope that helps.

Oh the Scorpionfly pic I posted the other day is a good example of the polarizer turned on part way - the fern fronds still have some highlights and the insect a shine. Using it in a partial turn also lets a bit more light in if that’s critical.

1 Like

@Kris_Smith
Many thanks

Huw

Thanks for sharing this Kris! I haven’t thought about using a polarizer on macro subjects so this is great food for thought. It really made a difference in this image. Nice capture of the mating dragonflies.

You’re very welcome @Allen_Sparks - The dragonflies were so preoccupied, they barely noticed me.

When I first started shooting macro with my Olympus E-30 and an adapted 35mm film lens, I either had or bought a polarizer that would fit the 90mm macro and started using it quite a bit. Everything was done on a tripod or beanbag and so adjusting the filter was easy and made so many images more rich and colorful as well as preserving detail by eliminating glare. If you do start using one, I’d love to get your perspective on the addition to your process.

I do like the results of using a polarizing filter. When I shot with a film camera, I nearly always relied on polarizers for removing specular highlights in shiny orchids like pleurothallids. The polarized version of the mating white-faced meadowhawks has ideal highlights. I may have to save up for a polarizer for some of my bigger lenses. Awesome lesson…Jim

Glad you found it useful, Jim. One idea is to get a single filter in a large size and adapt it down to your other lenses. You can do with a traditional threaded model or a magnetic one.
